ROAD BLOCK
D&S Technology’s Road Block System is a high-speed anti-terror barrier that stops unauthorized vehicles in just one second. It was developed to protect people and facilities from vehicle-based terror threats.
Unlike conventional systems that take over 4 seconds and require long stopping distances, this system enables instant response. D&S developed its own control PC, drive unit, and software, allowing for real-time operation, precise monitoring, and unmanned automation through system integration.
Tested and Passed U.S. Department of Defense Crash Test
Before Crash Test

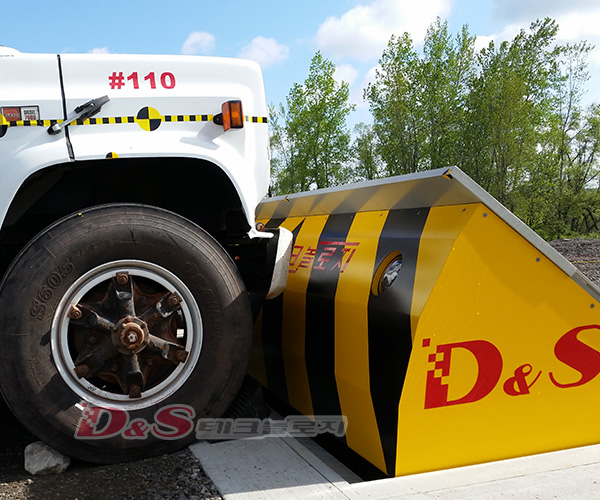

After Crash Test
Background of Development
Conventional systems require over 4 seconds to operate, making it virtually impossible to stop a speeding vehicle (over 50 km/h) without securing a stopping distance of more than 50 meters. Developed electronic dual-circuit and control technology for continuous high-speed elevation (Patent No. 1545264).
Core Technology 01
Implemented continuous high-speed operation and precise speed control technology.
Differentiation from Other Technologies
01 Achieves high-speed activation within 1 second—3 to 4 times faster than other systems with the same 4KV output.
02 No recharge or recovery time is needed after activation, allowing for continuous high-speed operation.
03 Hydraulic operation ensures excellent durability and wear resistance, with easy maintenance.
Core Technology 02
Using our self-developed control PC (operation workstation) and software, real-time operation, control, alerts, and monitoring of the system are possible. The system also integrates with various platforms to enable full automation.
Differentiation from Other Technologies
01 Supports standard protocols, enabling integration with other systems and unified network configuration.
02 Enables unmanned operation through a centrally controlled PC system.
03 Real-time monitoring of operational status and faults is possible remotely via graphical interface.
Product Specifications
| Crash Test | |
| Testing Agency | U.S. Department of Defense (DoD) |
| Crash Rating | ASTM F2656-07 M50/P1 (DS model) H30/P1 (DSH model) |
| Test Standards | 6.8ton, 82km/h (M50) 29ton, 50km/h (H30) |
| Size | |
| Barrier Width | 2m ~ 4m |
| Barrier Height | 650mm, 900mm |
| Operation | |
| Operating Method | Hydraulic Type (HPU) |
| Operating Temperature | -40ºC ~ +60ºC |
| Operating Speed | Rise Time: 1–3 seconds / Lowering Time: 3 seconds |
| Emergency Fast Operation (EFO) Mode | Application |
| Optional Features | Control via Operation Station / Integration with Under Vehicle Inspection System |
| Finish | |
| Material | Hot-Dip Galvanized Steel |
Completed Installations
When the Road Blocker Operates

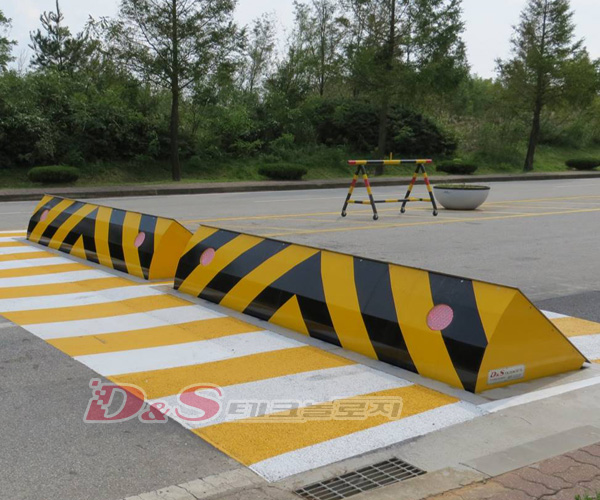

Installed in Restricted Areas

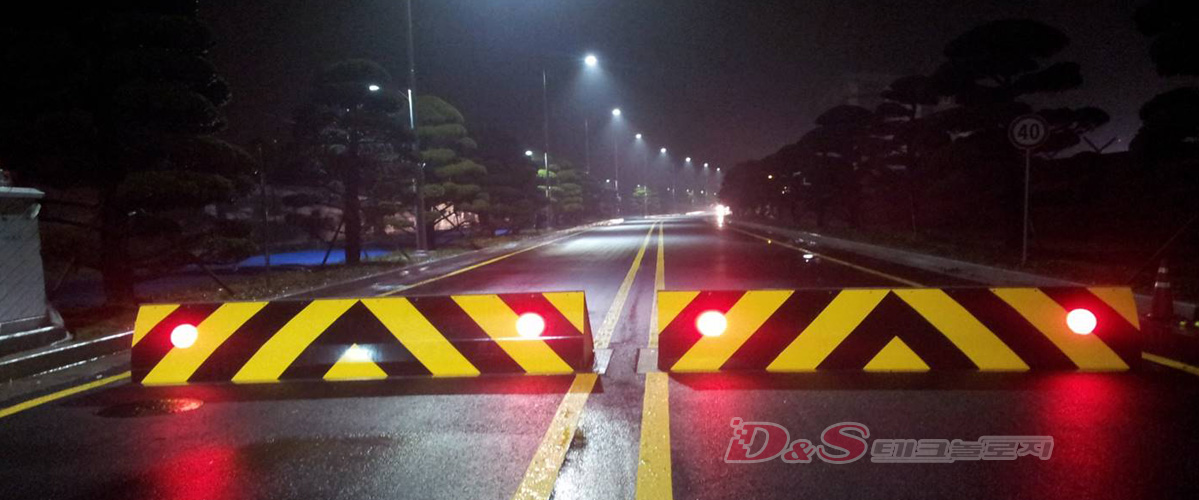

Appearance After Installation at Night
Product LIST
| Item ID | Model Name | Specifications | Public Procurement Service |
|---|---|---|---|
| 24707718 | DSH-2500 | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 2.5m / 90cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
Go to PPS > |
| 25166650 | DSH-2500-TK | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 2.5m / 100cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
Go to PPS > |
| - | DSH-3000 Series Common Specs |
- Components: control panel, system block, operation button - Defense grade: ASTM F2656-07 M50/P1 (based on 6.8-ton, 82km/h truck) - Defense speed: High-speed – around 1 second / Normal – around 3 seconds |
|
| 24707719 | DSH-3000 | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 3m / 90cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
Go to PPS > |
| 25166647 | DSH-3000-TK | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 3m / 100cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
Go to PPS > |
| 23140168 | DS-3090A | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 3m / 90cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
|
| 23140167 | DS-3065A | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 3m / 65cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
|
| 23140164 | DS-3090 | - Defense width/height: 3m / 90cm, manual operation | |
| 23140163 | DS-3065 | - Defense width/height: 3m / 65cm, manual operation | |
| 23140170 | DS-3590A | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 3m / 90cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
|
| 24707720 | DSH-3500 | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 3.5m / 90cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
Go to PPS > |
| 25166648 | DSH-3500-TK | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 3.5m / 100cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
Go to PPS > |
| 23140169 | DS-3565A | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 3.5m / 65cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
|
| 23140166 | DS-3590 | - Defense width/height: 3.5m / 90cm, manual operation | |
| 23140165 | DS-3565 | - Defense width/height: 3.5m / 65cm, manual operation | |
| 24707721 | DSH-4000 | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 4m / 90cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
Go to PPS > |
| 25166649 | DSH-4000-TK | - Equipped with operation station (including software), selectable automatic/manual mode - Defense width/height: 4m / 100cm - Main features: vehicle alert, detection, blocking and system block monitoring, history management, remote control |
Go to PPS > |
| - | Optional Features | - Laser speed detector, loop coil vehicle detector, under-vehicle inspection system, collision-sensing barrier | |
| - Various models available based on blocking width (2.5m / 3m / 3.5m / 4m) and height (60cm / 90cm) - Four optional feature types based on vehicle detection and operation method |
|||
