SPEED-FOLDING GATE

The High-Speed Folding Gate (automatic high-speed folding security gate) is a rapid-access system designed to control vehicles and personnel at entry points while completely preventing unauthorized forced entry. It can operate unmanned when integrated with access control and license plate recognition systems, and also supports multi-point control from a guard post or central security center. These gates are ideal for parking lots, prisons, high-security facilities, government buildings, truck yards, healthcare centers, and ambulance entrances.

Applications

Used in parking facilities, correctional institutions, high-security areas, government buildings, and ambulance access points.

Advantages

· Ultra-fast operation in 2 seconds (based on 4m span)

· High durability with continued function after impact (300kgf)

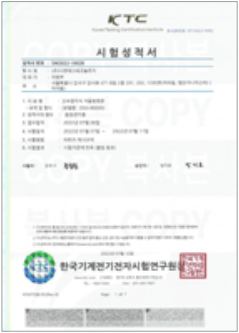

· Passed high-speed continuous operation test (2,000 cycles)

· Triple safety sensors to prevent accidents (beam sensor / bumper sensor / loop coil)

· Supports integration with access control and parking management systems

Components

2 Gates, 2 Sets of Posts, 2 Sets of Hinges (connecting Gate and Gate Post), Drive Unit, Power Supply, Control Unit, Operation Panel, 6 Bumper Sensors, 2 Sets of Beam Sensors

Technical Specifications

- Control System: PLC-based control with expandable I/O board. Installed inside the post, supports integration with LPR, RFID, road blockers, under-vehicle scanners, and various sensors.

- Loop Detector: Dual-channel loop detector connected to the control system to prevent gate closure when a vehicle is between the gates.

- Sensors: Dual sensor setup with beam and bumper sensors that send signals to the controller when a vehicle or person is detected.

- Signal Lights: Red and green LED lamps indicate gate open/close status, mounted on the Gate Post.

- Optional Features: Gate style and design, access control, LPR system, pedestrian/cargo doors, matching fence panels, warning/flashing lights.

Product Specifications

Large

Item ID	Model	Barrier Width / Height / Opening Width (mm)	Public Procurement
24602707	DSG-8000S	8,000 / 2,700 / 7,320	Go to G2B >
24602706	DSG-7000S	7,000 / 2,700 / 6,320	Go to G2B >
24602705	DSG-6500S	6,500 / 2,700 / 5,820	Go to G2B >
24602704	DSG-6000S	6,000 / 2,700 / 5,320	Go to G2B >
24602703	DSG-5500S	5,500 / 2,700 / 4,820	Go to G2B >

Medium / Small

Item ID	Model	Barrier Width / Height / Opening Width (mm)	Public Procurement
24602702	DSG-5000S	5,000 / 2,700 / 4,320	Go to G2B >
24602701	DSG-4500S	4,500 / 2,700 / 3,820	Go to G2B >
24602700	DSG-4000S	4,000 / 2,700 / 3,320	Go to G2B >
24602699	DSG-4000	4,000 / 2,700 / 3,340	Go to G2B >
